Electrolytic Tough Pitch Copper
Material No. Unified Numbering System (UNS): C11000
Chemical Composition
| Element | Cu(1,2) | Oxygen |
|---|---|---|
| Min (%) | 99.90 Min. | 0.04 Max. |
- Cu value includes Ag.
Cu-ETP has a very high electrical and thermal conductivity. It has excellent forming properties. Due to its oxygen content soldering and welding properties are limited.
Common Fabrication Processes
- Forging
- Extruding
- Drawing
- Ring Rolling
- Bending
- Machining
Mechanical & Electrical Properties
Swipe from right to left to view more
| Form | Tensile Strength In N/MM² | Elongation In % | Hardness in BHN | Conductivity % IACS at 20°C | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Annealed condition | Half hard Condition | Full Hard Condition | Annealed condition | Half hard Condition | Full Hard Condition | Annealed condition | Half hard Condition | Full Hard Condition | ||
| Rod | ≥ 200 | ≥240 | ≥290 | 35 | 15 | 10 | 45-60 | 65-85 | 85-110 | ≥97 |
| Flat | ≥ 200 | ≥240 | ≥290 | 35 | 15 | 10 | 45-60 | 65-85 | 85-110 | ≥97 |
| Profile | ≥ 200 | ≥240 | ≥290 | 35 | 15 | 10 | 45-60 | 65-85 | 85-110 | ≥97 |
| Short Circuit Ring | ≥ 200 | - | - | 35 | - | - | 45-60 | - | - | ≥99.0 |
| Rotor Bar | ≥ 200 | - | - | 35 | - | - | - | - | - | ≥99.0 |
| Tube as extruded Condition | - | - | - | - | - | - | 45-60 | - | - | ≥97 |
| Forged Block | - | - | - | - | - | - | 45-60 | - | - | ≥97 |
Physical Properties
| Melting Point – Liquidus °C | 1083 |
|---|---|
| Melting Point – Solidus °C | 1065 |
| Density lb/cu in. at 20°C | 0.322(1) |
| Specific Gravity | 8.91 |
| Electrical Conductivity% IACS at 20°C | 101(2) |
| Thermal Conductivity Btu/ sq ft/ ft hr/ °C at 20°C | 226 |
| Coefficient of Thermal Expansion 20 – 100 10-6 per °C (20 – 100°C) | 9.4 |
| Coefficient of Thermal Expansion 20 – 200 10-6 per °C (20 – 200°C) | 9.6 |
| Coefficient of Thermal Expansion 20 – 300 10-6 per °C (20 – 300°C) | 9.8 |
| Specific Heat Capacity Btu/ lb /°C at 20°C | 0.092 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Modulus of Rigidity ksi | 6400 |
|
|
Applicable Form & Size
|
Form |
Size |
|
Rod |
Dia : Ø10 mm-Ø145mm, Length : 2 Mtr max |
|
Flat / Rotor Bar |
Thick : 5 mm-60 mm Width : 20 mm-150 mm Length -2 Mtr max |
|
Profile |
Circumscribing circle of Dia 30 to 150 mm |
|
Wheel |
Dia : Ø400 mm max, Thick : 5 mm – 50 mm |
|
Tube as Extruded Condition |
ID : - Ø45 mm- Ø117mm OD :– Ø85 mm- Ø150mm |
|
Forged Block |
Thick : 170 mm max Width : 320 mm max Length : 600 mm max |
|

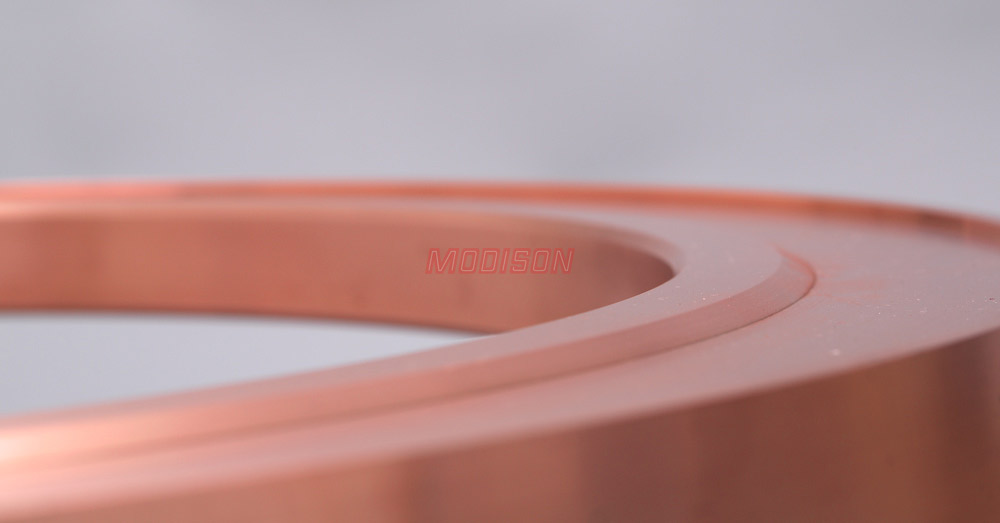

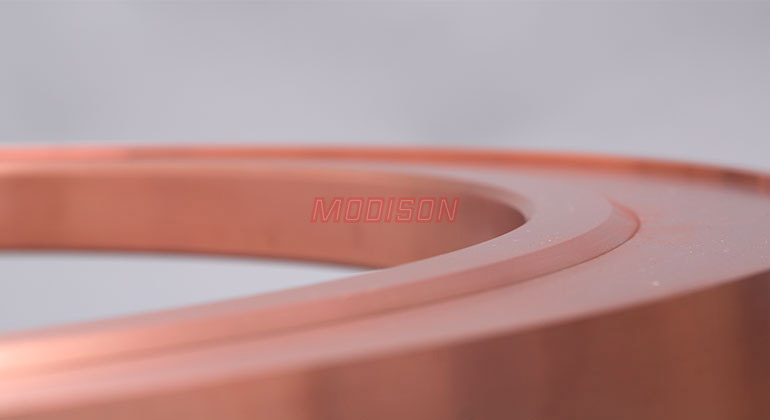

Short Circuit Ring |
OD : Ø270 – Ø830 mm, ID : Ø160 – Ø700 mm, Thick : 17mm to 90mm |
Apart from above we can also manufacture as per customer specification.
Typical Applications
|
Electrical
Industrial
|
